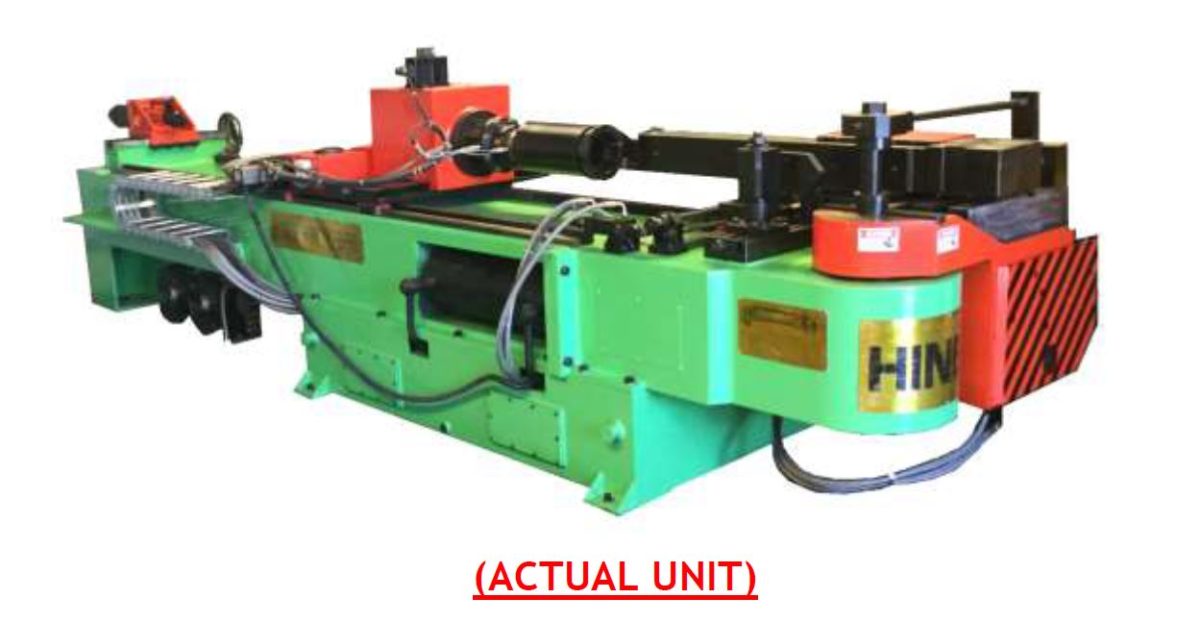

Used 600CNC Demo Unit For Sale

600CNC Demo unit & still has our warranty. It is our 600CNC with a simple Mitsubishi Control which we have in stock. This has been used only as a demo in our shop for the past year & a half. This is why we have dropped the price to our cost. Dies can be available.

Description and Standard Features:

Drop-a-Way Clamp Holder Standard
Pressure Die Holder Standard
Wiper Die Holder Standard
Overhead Tie Bar Standard
Mandrel Lubricator Standard
Mandrel Extractor Standard
Panasonic Servo Motors Standard
Hydraulic Carriage Boost Standard
Max. Feeding 33 ft/min
Max POB 20 r/min
Standard Maximum Radius 18 inch
Maximum Bend Angle 190 degrees
Max. Length Over Mandrel 13-1/2 ft.
Bend Angle Accuracy +/- 0.1 degree
Bending Arm Speed 2 RPM
Motor 40 HP
Electrical Power 440 / 480 / 3 phase/ 50/60Hz
Operating Pressure 2300 PSI
Reservoir Capacity 275 U.S. Gallons
Max Amperage at Startup 100AMP
Max Amperage When Running With Full Load 40AMP
Approximate Weight 26,000 lbs.
Clockwise Rotation Standard
Capacity As Follows:
Round Tube Capacity 6” OD x .250 wall
