200 CNC TUBE BENDER

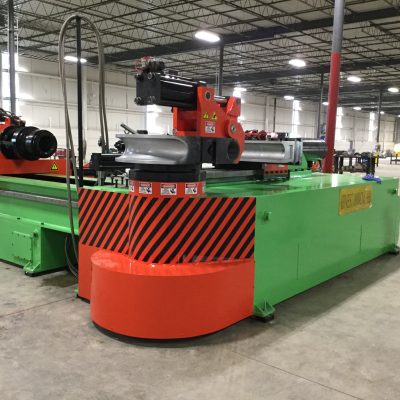

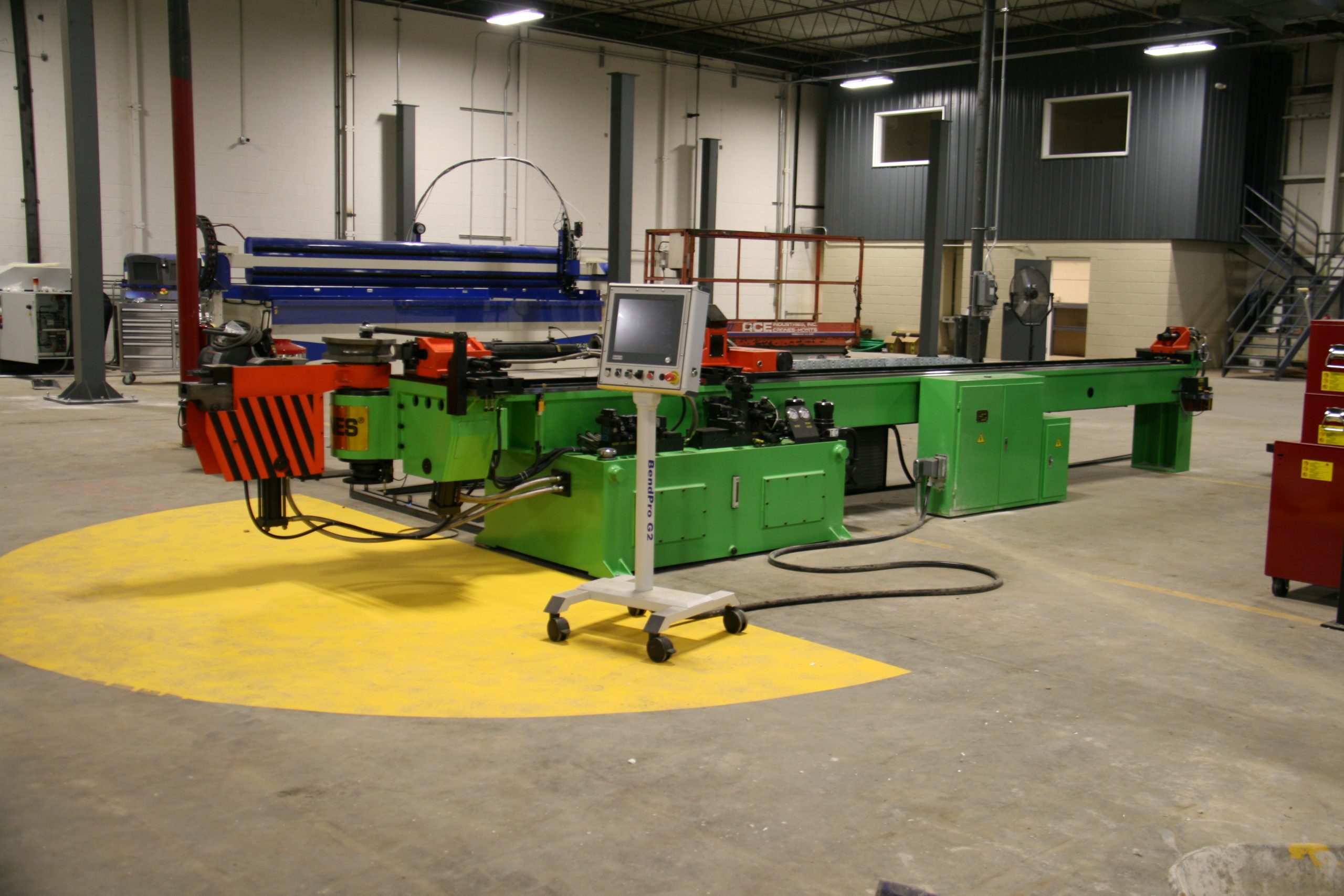

THE 200 CNC-B TUBE BENDER IS LOADED WITH ALL THE FEATURES AND FUNCTIONALITY OF A LARGER MACHINE AT A LOWER COST SHOWN HERE WITH A BENDPRO G2 CONTROL.

If you are looking to “step-it-up” and need a bending machine that can produce 3-axis, larger outside diameter (O.D.) bends, then the 200 CNC-B Bending Machine is exactly what you need. The bender’s 2.50” O.D. capacity provides you with a built-in advantage for selling sophisticated auto parts: the capacity to dramatically expand your product line.

Description

The 200 CNC-B bender is known to produce a wide range of parts with ease.

200 CNC-B Tube Bender Applications
The 200 CNC-B bender is used throughout the exhaust, automotive, RV and Offroad/ATV industries. Firms selling bull bars and roll cages produce their products using 200 CNC-B benders.

If you need a machine or tooling quote, click here.

Return to home page to see additional tube benders.

FEATURES OF THE 200 CNC-B TUBE BENDER

  • 12” CRT Touchable Panel (Digital 477)
  • Simple input of machine parameters, DOB, DBB, POB (PLC-FX3U
    series Mitsubishi)
  • Memory capacity: 200 job storage, 6 bends per part
  • Operational modes: jog, step and auto
  • Self diagnosis: displays of fault source and remedies
  • Identification of single bend from multi-bend part.
  • Self option carriage use
  • Safety auto prevention from bending operation when
    last end section is too short
  • Speed levels of DOB, DBB, and POB: 16 variable settings
  • Repeatability precision: DOB/POB: 0.1deg; DBB: 0.1mm
  • Resolution: DOB/POB: 0.1deg; DBB: 0.1mm
  • Parameter preset resolution: DOB/POB: 0.1deg; DBB: 0.1mm
  • Northman Directional Valves
  • Preset of processing, i.e., with mandrel or without mandrel,
    auto mandrel lubrication, speed levels of DOB, DBB, and
    POB / Servo System – Series A, National (Japan)

STANDARD

  • Pressure Die Holder
  • Wiper Die Holder
  • Overhead Tie Bar (Eliminates Die Deflection)
  • Pressure Die Assist
  • Servo Carriage Boost
  • Panasonic Servo Motors
  • Mandrel Lubricator
  • Mandrel Extractor
  • Mandrel Early Out Programmable
  • Touch Screen (Proface America)
  • Clockwise Rotation

ADDITIONAL SPECIFICATIONS FOR THE 200 CNC-B

  • Capacity: 2.5″ OD x .200 Wall
  • Maximum Feeding: 55ft/min
  • Maximum POB: 28r/min
  • Standard Maximum Radius: 12 inch
  • Maximum Bend Angle: 190 degrees
  • Operating Pressure: 2000 psi
  • Reservoir Capacity: 175 US gallons
  • Approximate Weight: 10000lbs
  • Approximate Dimensions: 15′ L x 5′ W x 4.5′ H
  • Voltage: 220 volt/440/3 Phase/60Hz; 50Hz Optional
  • Bend angle accuracy +/-: 0.1 degree
  • Bend arm speed: 5 rpm
  • Maximum tube length over mandrel: 8ft
  • Motor: 25HP
