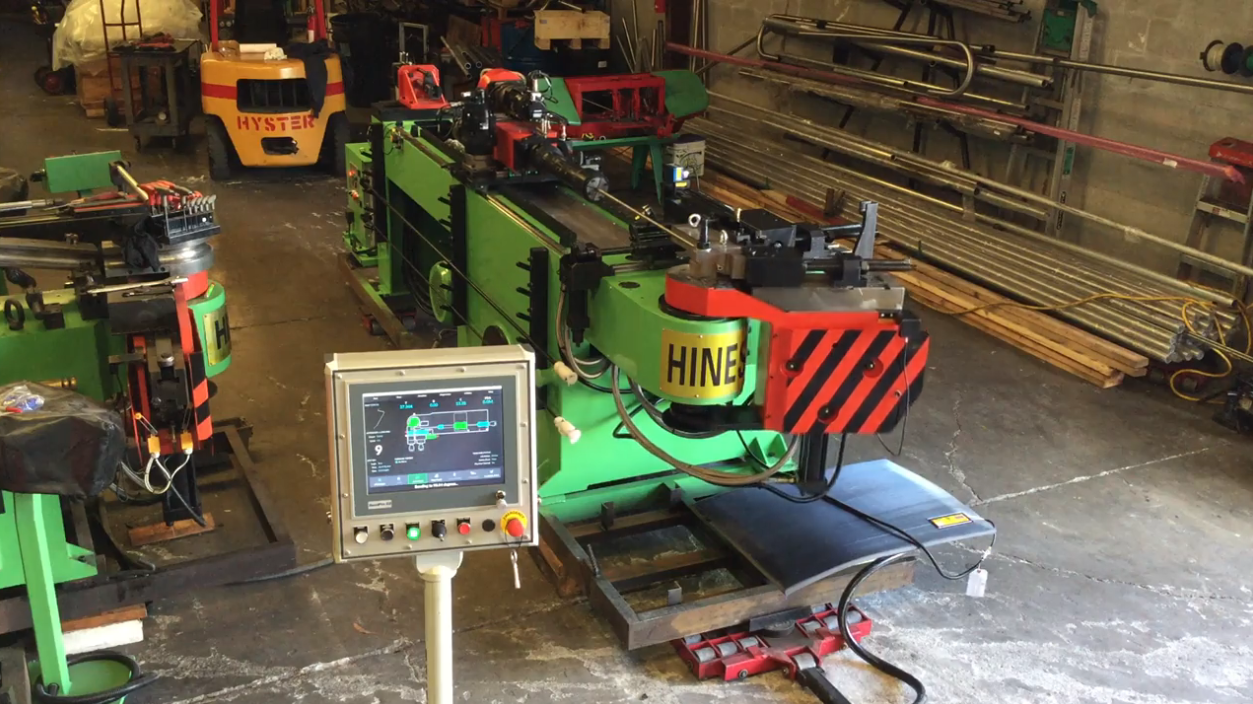

150 CNC TUBE BENDER

THE 150 NC TUBE BENDER IS THE INTERMEDIATE AND AFFORDABLE CHOICE FOR PRODUCING BENDS Up to 1.50 INCH OD

If you need a tube bender to meet many production needs, then the 150 CNC-B bender should be on your required list. The 150 CNC-B bender was designed to produce bends up to 1.5” O.D. by .125 Wall, the most common of pipe and tube ranges. The 150 CNC-B’s ability to fulfill a variety of customer tube bending requirements means you should be able to not only recoup your investment quickly, but also expand sales and revenue.

Description

Universally, the 150 CNC-B bender is recognized as a “must-have” for all your manufacturing needs.

150 CNC-B Tube Bender Applications
The 150 CNC-B bender is used throughout all manufacturing industries as its uses are virtually unlimited.

If you need a machine or tooling quote, click here.

Return to home page to see additional tube benders.

FEATURES OF THE 150 CNC-B TUBE BENDER

  • 12” CRT Touchable Panel (Digital 477)
  • Simple input of machine parameters, DOB, DBB, POB (PLC-FX3U
    series Mitsubishi)
  • Memory capacity: 200 job storage, 6 bends per part
  • Operational modes: jog, step and auto
  • Self diagnosis: displays of fault source and remedies
  • Identification of single bend from multi-bend part.
  • Self option carriage use
  • Safety auto prevention from bending operation when
    last end section is too short
  • Speed levels of DOB, DBB, and POB: 16 variable settings
  • Repeatability precision: DOB/POB: 0.1deg; DBB: 0.1mm
  • Resolution: DOB/POB: 0.1deg; DBB: 0.1mm
  • Parameter preset resolution: DOB/POB: 0.1deg; DBB: 0.1mm
  • Northman Directional Valves
  • Preset of processing, i.e., with mandrel or without mandrel,
    auto mandrel lubrication, speed levels of DOB, DBB, and
    POB / Servo System – Series A, National (Japan)

STANDARD

  • Pressure Die Holder
  • Wiper Die Holder
  • Overhead Tie Bar (Eliminates Die Deflection)
  • Pressure Die Assist
  • Servo Carriage Boost
  • Panasonic Servo Motors
  • Mandrel Lubricator
  • Mandrel Extractor
  • Mandrel Early Out Programmable
  • Touch Screen (Proface America)
  • Clockwise Rotation

ADDITIONAL SPECIFICATIONS FOR THE 150 CNC-B

  • Capacity: 1.50″ OD x .125 Wall
  • Maximum Feeding: 130ft/min
  • Maximum POB: 40r/min
  • Standard Maximum Radius: 10 inch
  • Maximum Bend Angle: 190 degrees
  • Operating Pressure: 1200psi
  • Reservoir Capacity: 120 U.S. Gallons
  • Approximate Weight: 7000 lbs
  • Approximate Dimensions: 12’ L x 4’ W x 42” H
  • Voltage: 220 volt/3 Phase/60Hz; 50Hz Optional
  • Bend angle accuracy +/-: 0.1 degree
  • Bend arm speed: 10 rpm
  • Maximum tube length over mandrel: 6 ft
  • Motor: 10HP
