Description

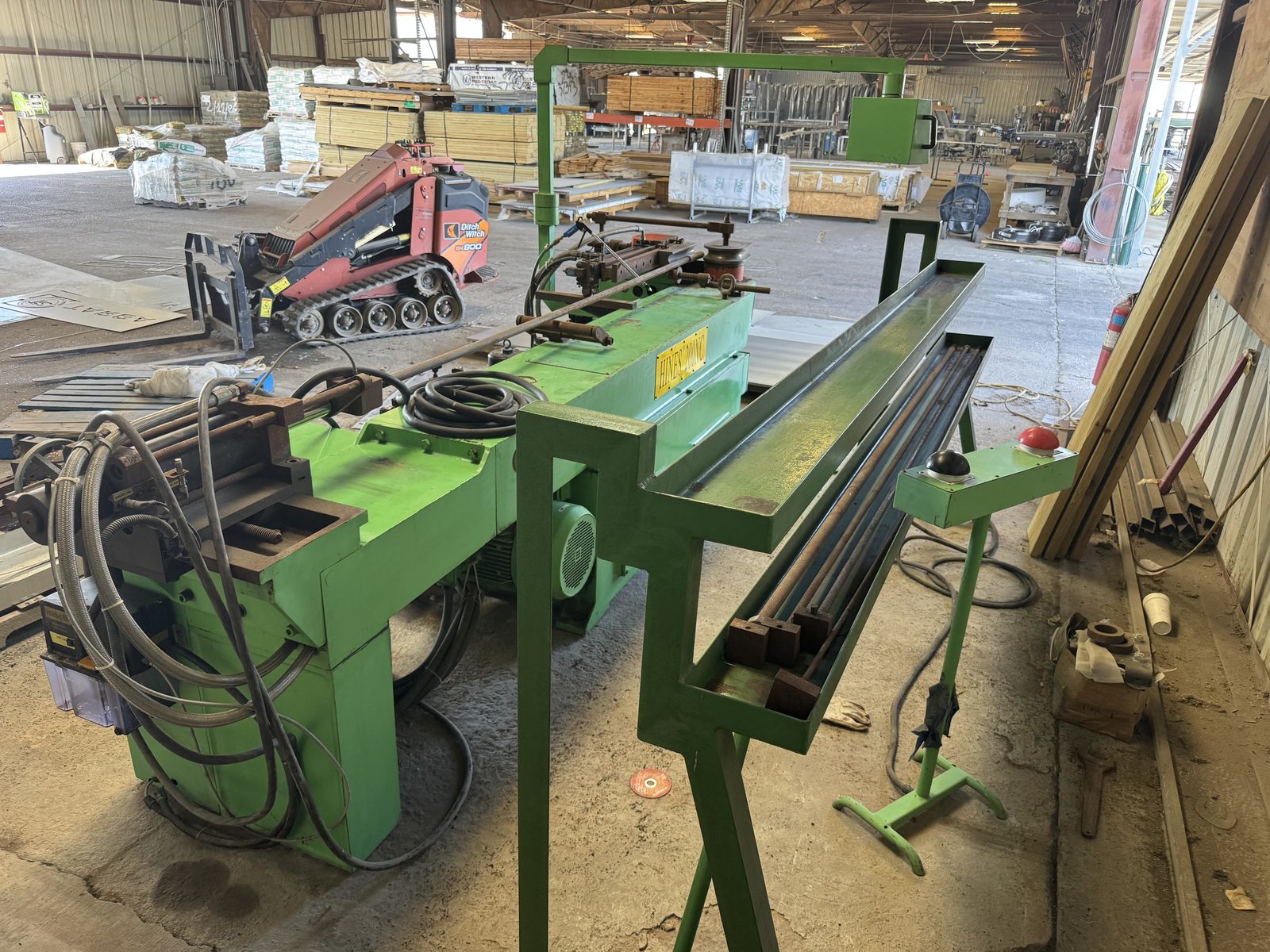

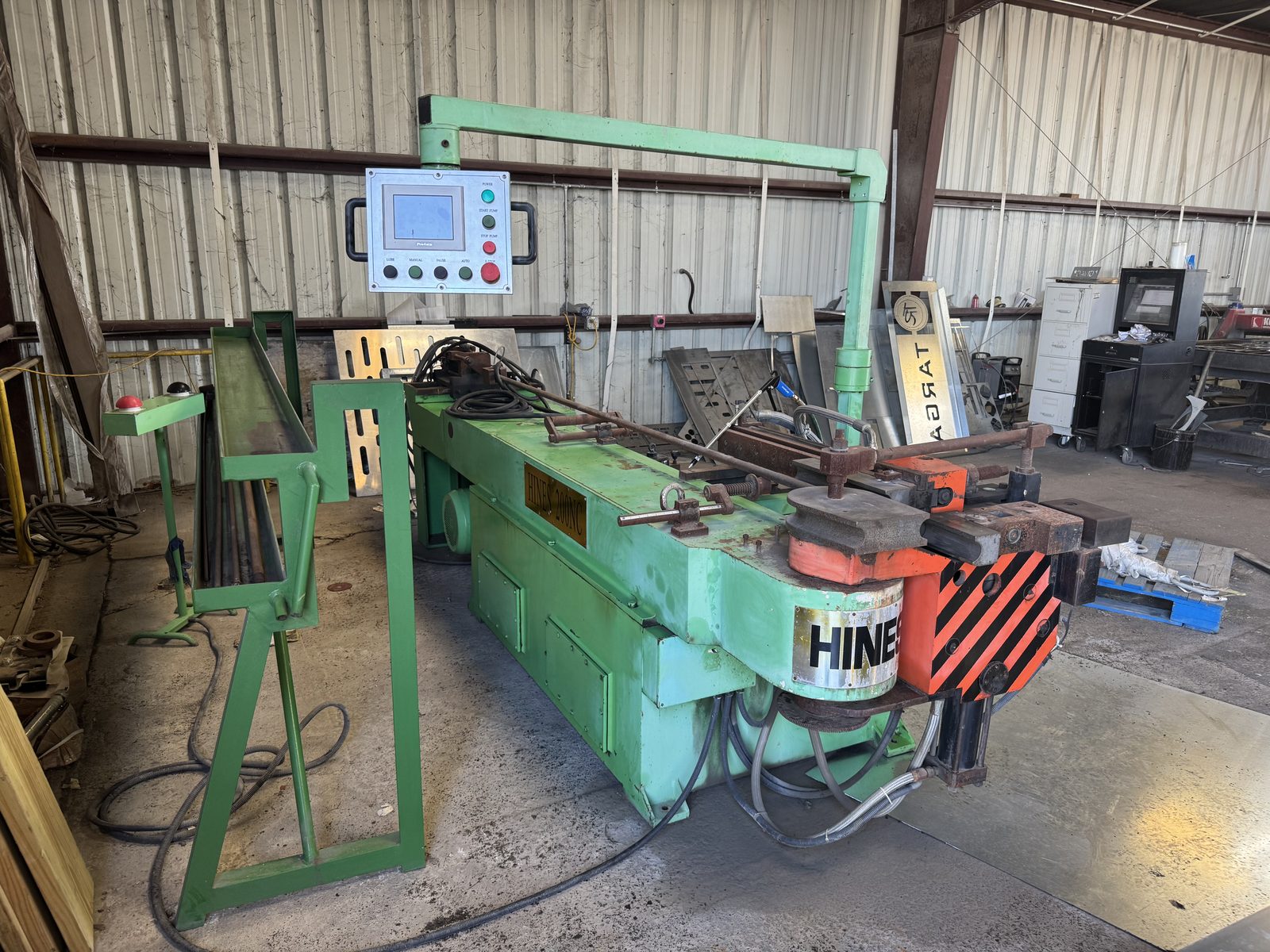

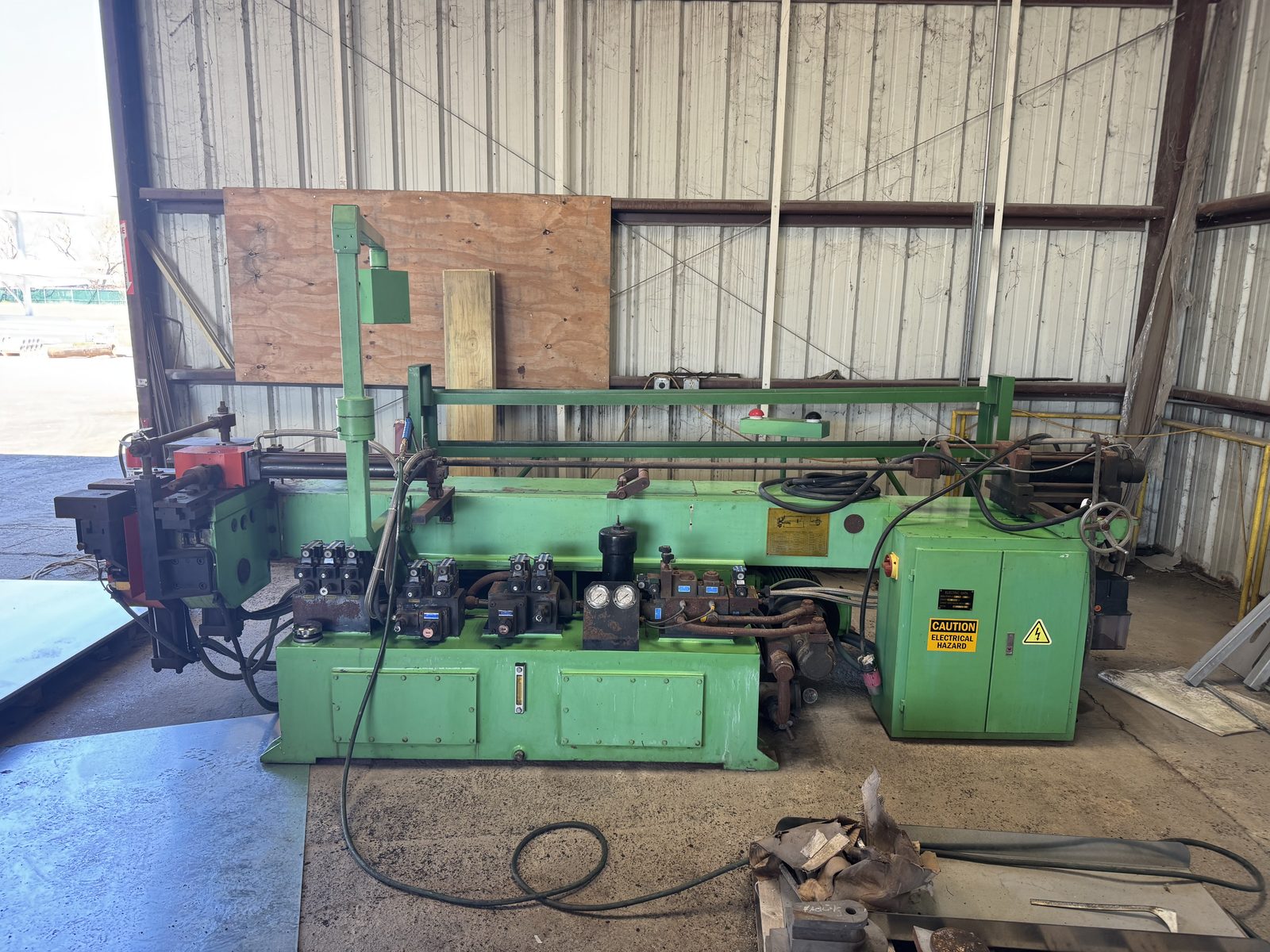

Used 2014 Hines Model 200 Semi-Automatic Tube & Pipe Bender Currently located in the Houston, Texas area.
Capacity: Round Tube / Mild Steel — 3″ OD × .125 Wall
Key Specifications
- Standard Maximum Radius: 12″
- Maximum Bend Angle: 190 degrees
- Bend Angle Accuracy: ±0.1 degrees
- Maximum Tube Length Over Mandrel: 9 feet
- Bending Arm Speed: 5 RPM
- Motor: 15 HP
- Operating Pressure: 2,000 PSI
- Reservoir Capacity: 135 U.S. Gallons
- Approximate Weight: 7,700 lbs.
- Approximate Dimensions: 13′ L × 3.5′ W × 4′ H

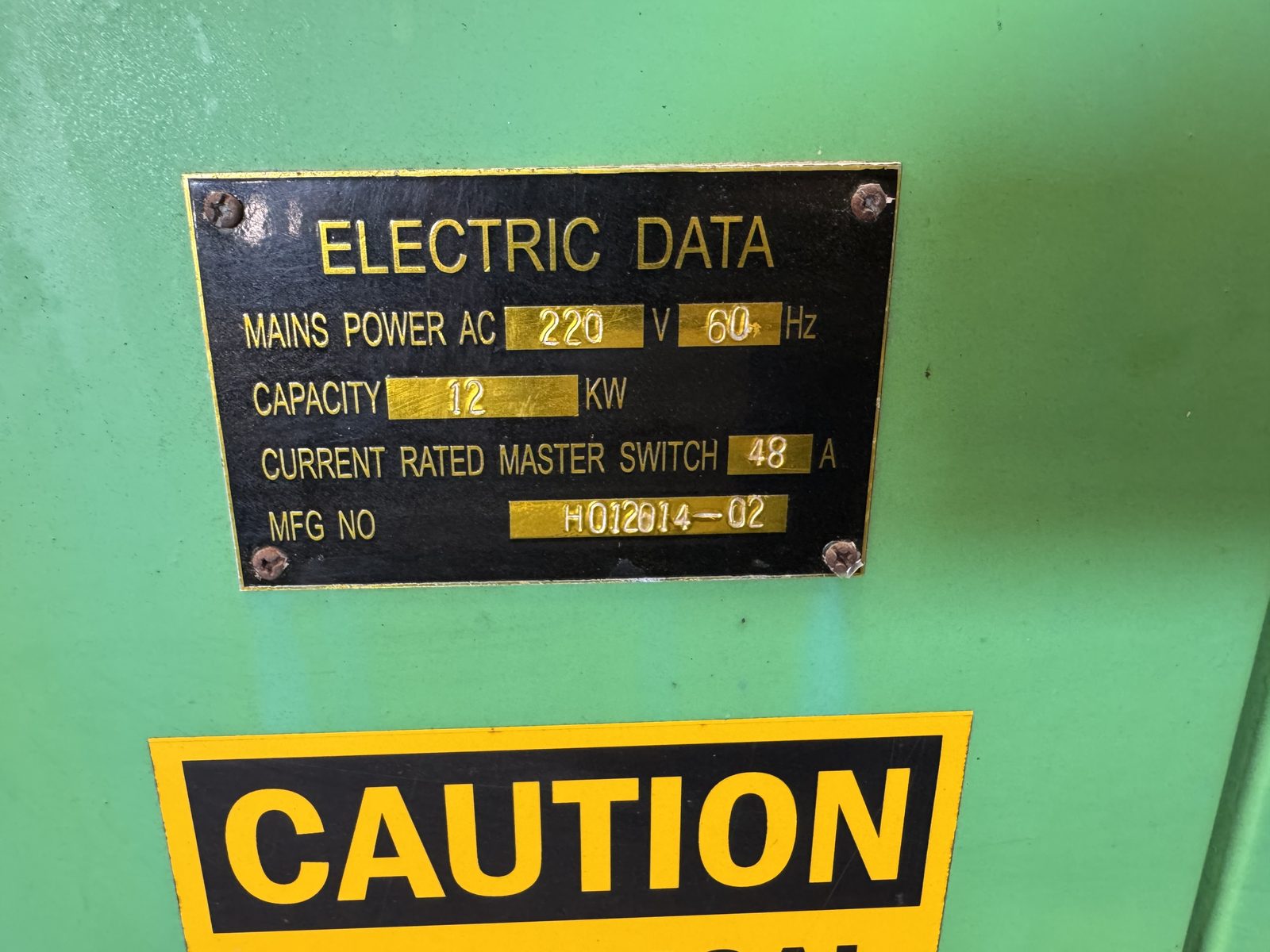

- Voltage: 220V / 3 Phase / 60 Hz (*50Hz optional)
- Clockwise Rotation: Standard
- Mandrel Rod Thread Sizes Supplied: (1) 1.00-8, (2) .625-11
Standard Features
- Drop-A-Way Clamp Holder, Pressure Die Holder, Wiper Die Holder
- Overhead Tie Bar (eliminates die deflection)
- Pressure Die Assist (Boost) & Rear Support Roller
- Mandrel Lubricator, Mandrel Extractor, Programmable Mandrel Early Out
- Tube Piece Counter, Programmable Soft Clamp
- Manifold-Style Hydraulics with High-Pressure Filter
- Increased Cylinder Size (more torque capability)
- Mitsubishi PLC (FX3U-48MR/ES-A) — stores 100 jobs, 6 bends per job
- Touch Screen (Proface America, Chicago)

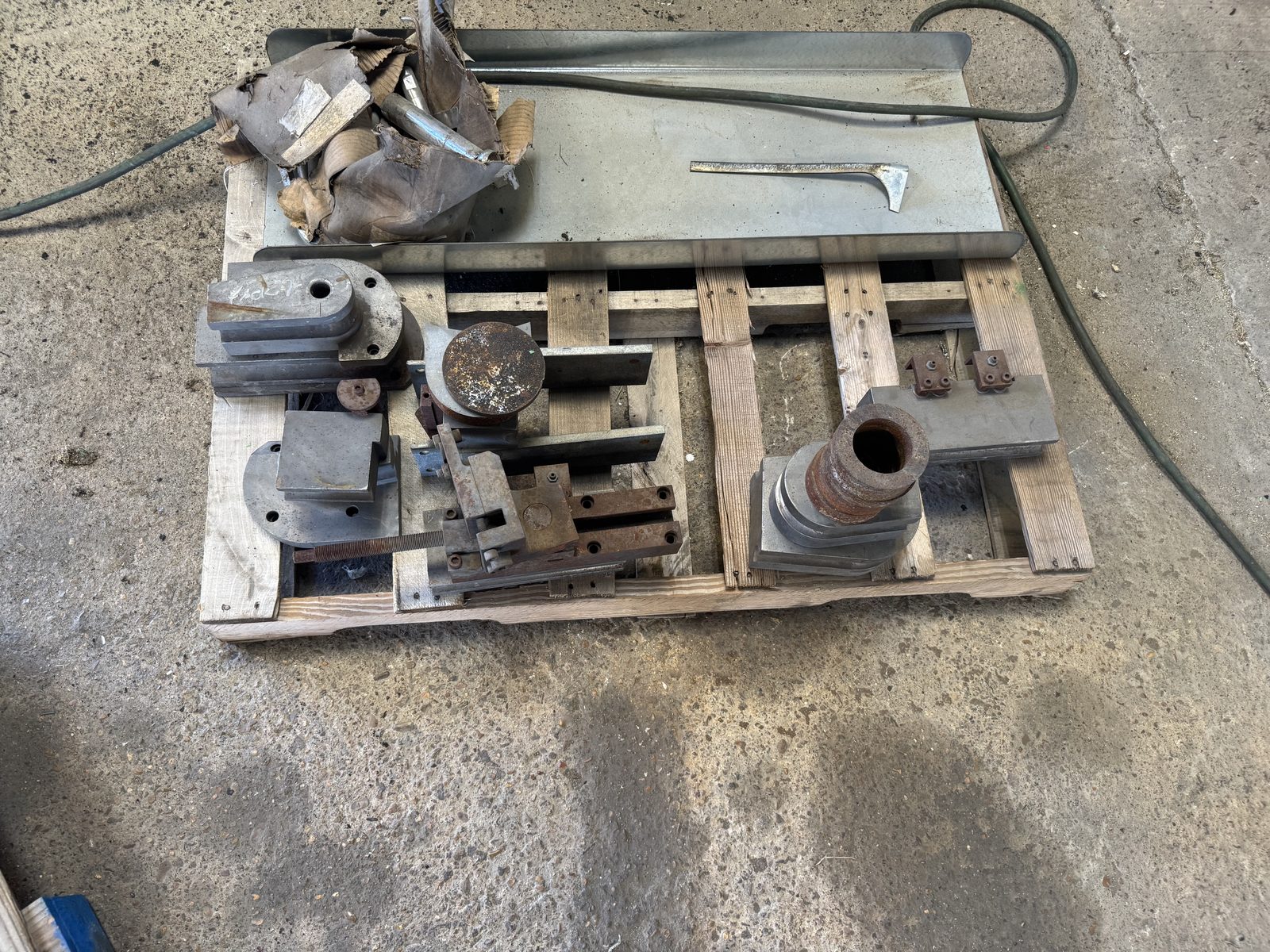

Dies & Mandrel Rods Included
- 1.050″ OD × 1.125″ CLR
- 1.315″ OD × 3.00″ CLR
- 1.315″ OD × 1.500″ CLR
- 1.900″ OD × 2.250″ CLR
- 1.900″ OD × 4.500″ CLR
Call (800) 949-8344 for a current quote.
