Description
(THIS MACHINE HAS BEEN SOLD) NEW MODELS ARE AVAILABLE, CONTACT US FOR MORE INFORMATION
Perfect for Custom Exhaust Work. 2007 Model Year. Currently located in Waipahu, Hawaii 96797.
MAIN SPECIFICATIONS:
Machine Details:

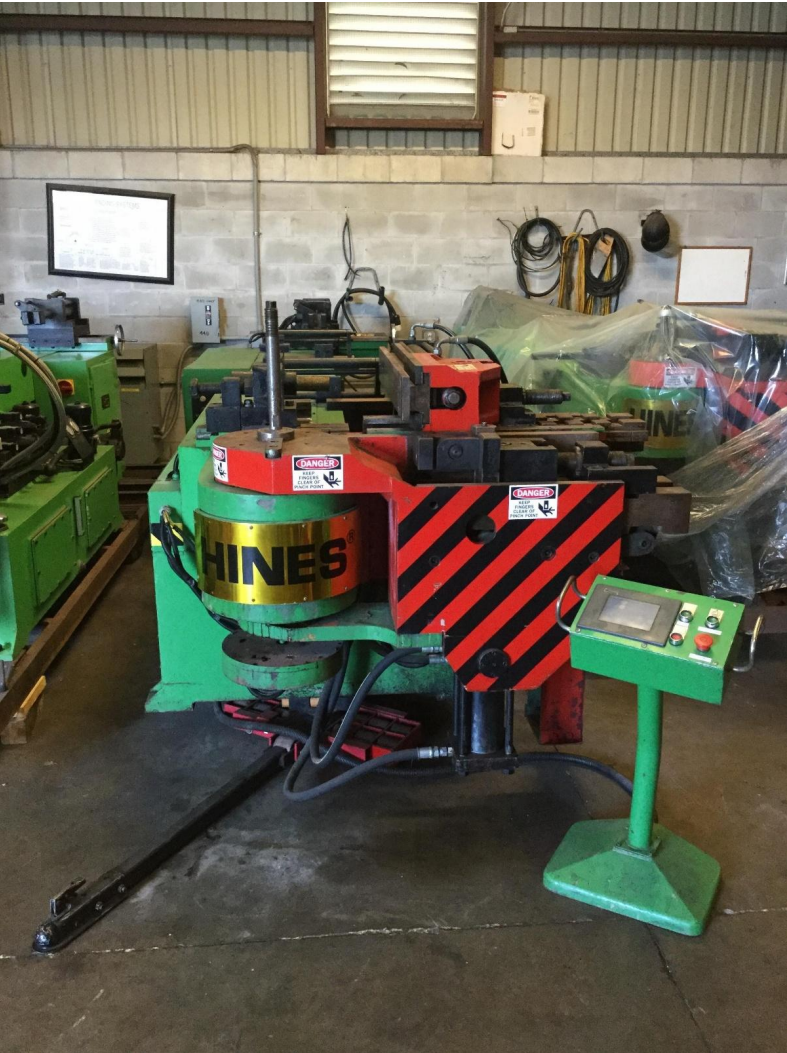

- Model: Hines Model 300 Semi-Automatic Mandrel Tube Bender
- Year: 2007
- Condition: USED
- Current Location: Waipahu, Hawaii 96797
Technical Specifications:
- Standard Maximum Radius: 18 inch
- Maximum Bend Angle: 190 degrees
- Bend Angle Accuracy: ±0.1 degrees
- Maximum Tube Length Over Mandrel: 10 FEET
- Bending Arm Speed: 3.5 RPM
- Motor: 20 HP
- Operating Pressure: 2,000 PSI
- Reservoir Capacity: 150 U.S. Gallons
- Approximate Weight: 13,800 Lbs.
- Approximate Dimensions: 15′ L × 6′ W × 5.5′ H
- Voltage: 220/440/3 Phase/60 Hz (*50Hz optional)
- Clockwise Rotation: Standard
- Capacity: Round Tube Mild Steel 4″ OD × .226 Wall
Standard Features:
- Drop away clamp die holder
- Pressure Die Holder
- Wiper Die Holder
- Overhead Tie Bar
- Pressure Die Assist
- Pressure Die Assist Rear Support Roller
- Programmable Soft Clamp
- Mandrel Rod Thread Sizes Supplied (2): 1.00-8 / 1.75-10
- Mandrel Lubricator
- Mandrel Extractor
- Mandrel Early Out Programmable
- Mitsubishi PLC (FX3U-48MR/ES-A) – Stores 200 jobs with 6 bends per job
- Touch Screen (Proface America)
Tooling Included:
Complete tooling sets included with this machine:
- 2-1/4″ OD × 3-1/2″ Radius × .060 Wall Complete set: Bend die, clamp die, pressure die, wiper die & mandrel
- 2-1/2″ OD × 3-1/2″ Radius × .060 Wall Complete set: Bend die, clamp die, pressure die, wiper die & mandrel
- 3″ OD × 5″ Radius × .060 Wall Complete set: Bend die, clamp die, pressure die, wiper die & mandrel
All offers considered
