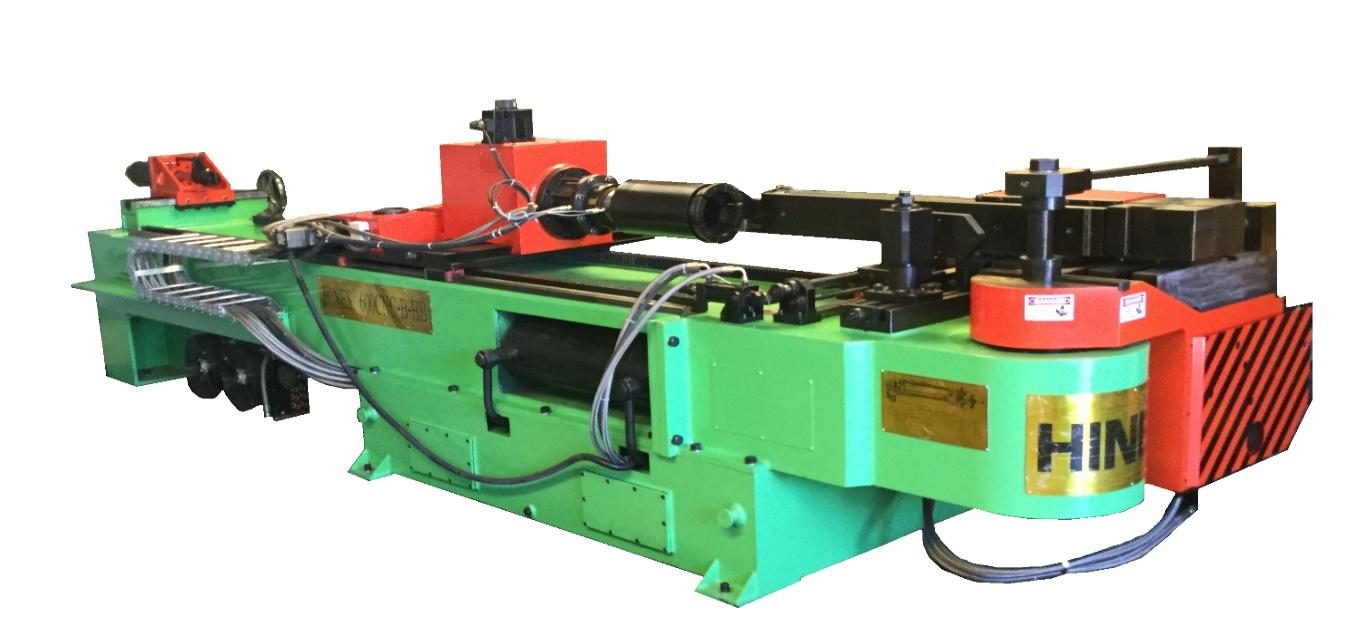

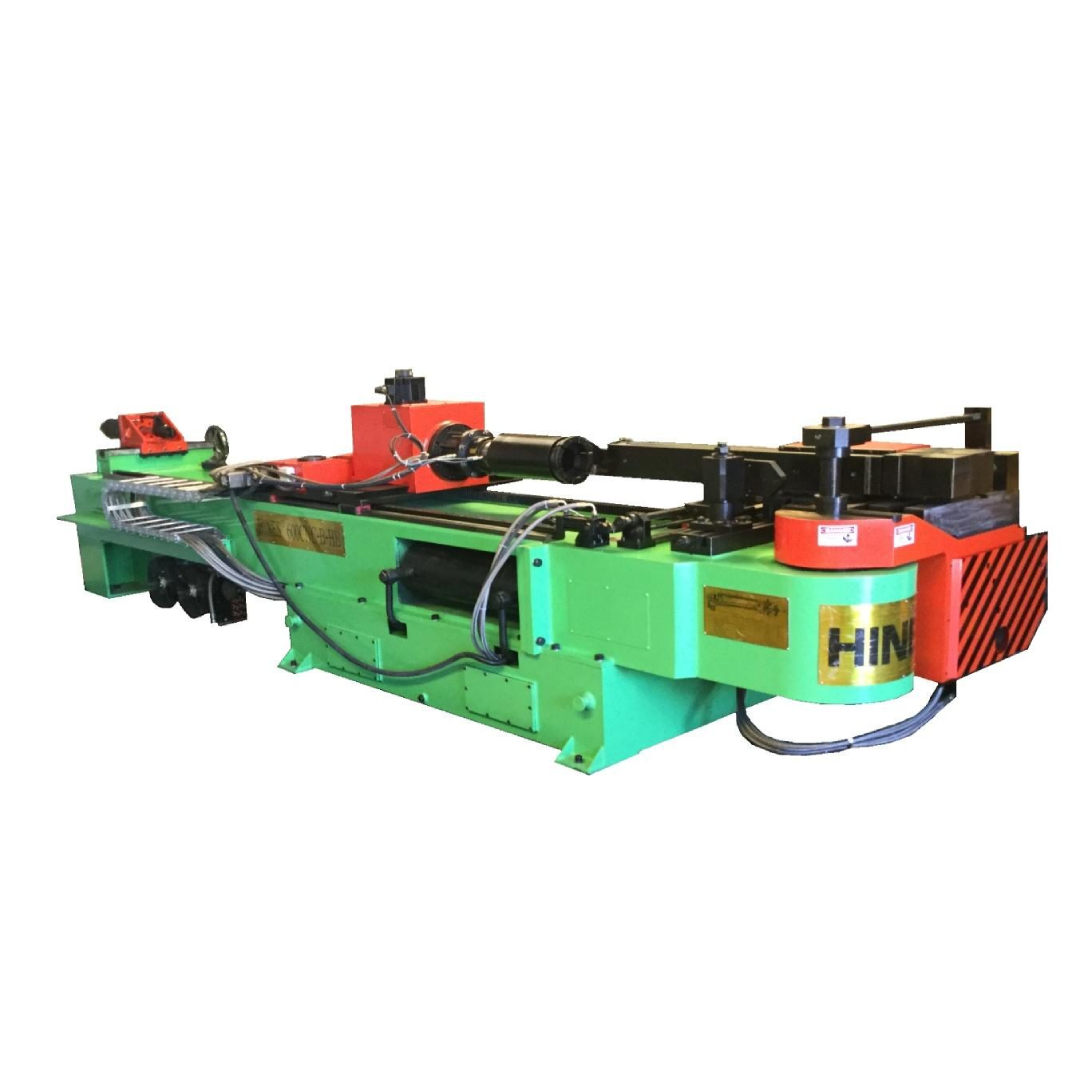

Demo 2022 Hines Model 600 CNC-B Series Hydraulic Tube Bender
Demo model. Currently located in South Florida.
Capacity: Round Tube — 6″ OD × .250 Wall
Key Specifications
- Standard Maximum Radius: 18 inch
- Maximum Bend Angle: 190 degrees
- Bend Angle Accuracy: ±0.1 degrees
- Max Length Over Mandrel: 14 feet
- Max Feeding: 33 ft/min
- Max POB: 20 RPM / Bending Arm Speed: 2 RPM
- Motor: 40 HP
- Electrical Power: 440/480 / 3 Phase / 60 Hz (*50Hz optional)
- Operating Pressure: 2,300 PSI
- Reservoir Capacity: 275 U.S. Gallons
- Max Amperage at Startup: 100 AMP / Running Full Load: 40 AMP
- Approximate Weight: 26,000 lbs.
- Clockwise Rotation: Standard
Standard Features
- Drop-A-Way Clamp Holder, Pressure Die Holder, Wiper Die Holder
- Overhead Tie Bar
- Mandrel Lubricator, Mandrel Extractor, Programmable Early Mandrel Release
- Hydraulic Carriage Boost
- Panasonic Servo Motors
- Northman Directional Valves
CNC-B Series Control Features
- 12″ CRT Touch Screen (Digital 477)
- Mitsubishi PLC (FX3U series); National (Japan) Series A servo system
- Simple input of DOB, DBB, POB parameters
- Preset processing (with/without mandrel), auto mandrel lubrication
- Memory: 200 job storage, 6 bends per part
- Operational modes: Jog, Step, and Auto
- Self-diagnosis with fault source display and remedies
- Single-bend / multi-bend part identification; self-option carriage use
- 16 variable speed settings for DOB, DBB & POB
- Repeatability: DOB/POB 0.1°, DBB 0.1 mm
- Auto-prevention of bending when last end section is too short
Call (239) 433-2132 for a quote.
