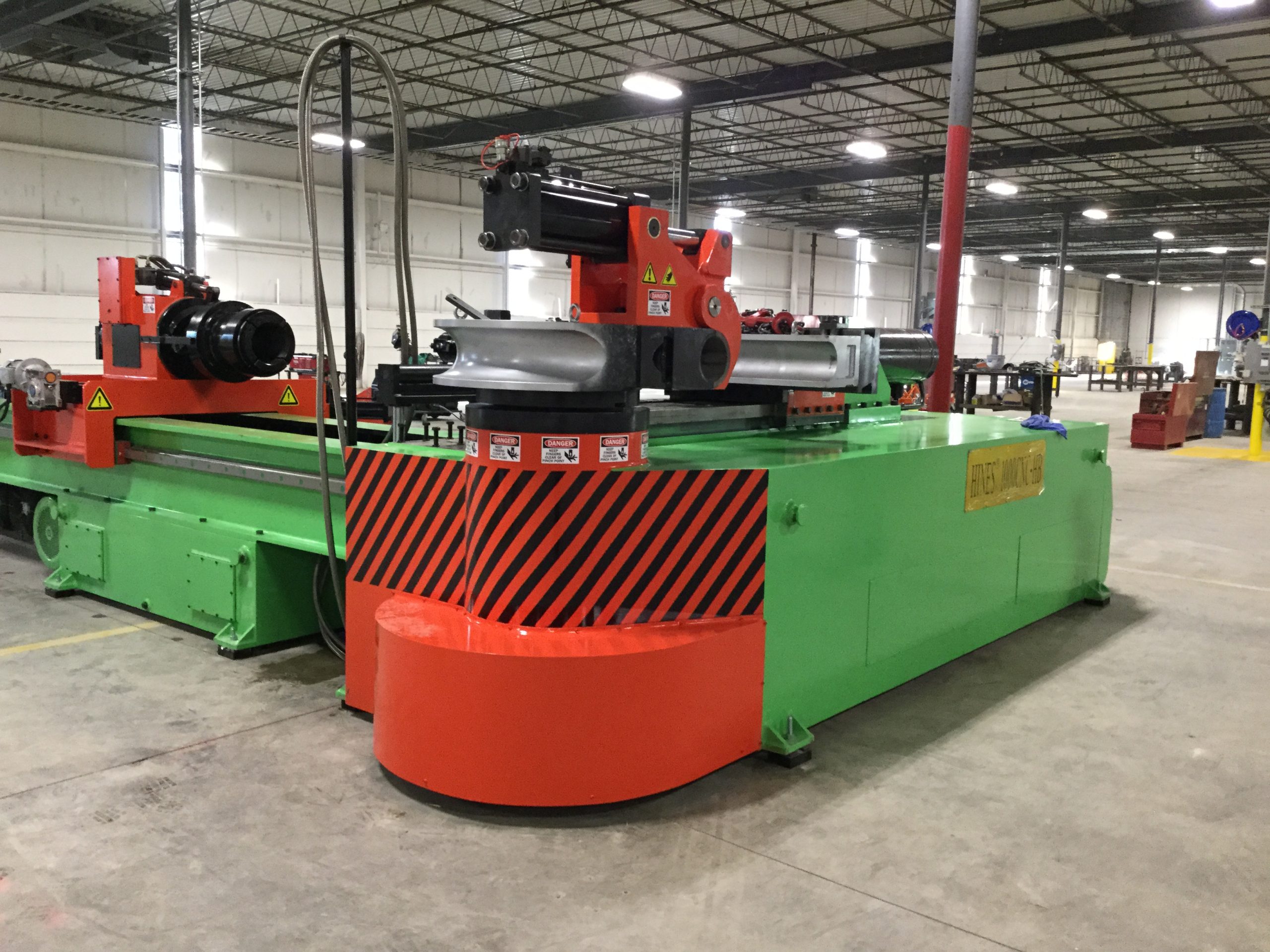

1000 CNC TUBE BENDER

If your customers’ pipe or tube bending requirements include oil and gas or construction, then the 1000 CNC-B tube is the machine of choice. Its ability to bend extremely heavy pipe up to 8” means you can effectively ensure quality across piping systems.

The 1000 CNC-B is very popular in manufacturing for the most difficult of jobs for heavy wall pipe bending.

Description

1000 CNC-B Tube Bender Applications
The 1000 NC bender is used largely in the oil and gas industry and construction industries

FEATURES OF THE 1000 CNC-B TUBE BENDER

  • 12” CRT Touchable Panel (Digital 477)
  • Simple input of machine parameters, DOB, DBB, POB (PLC-FX3U
    series Mitsubishi)
  • Memory capacity: 200 job storage, 6 bends per part
  • Operational modes: jog, step and auto
  • Self diagnosis: displays of fault source and remedies
  • Identification of single bend from multi-bend part.
  • Self option carriage use
  • Safety auto prevention from bending operation when
    last end section is too short
  • Speed levels of DOB, DBB, and POB: 16 variable settings
  • Repeatability precision: DOB/POB: 0.1deg; DBB: 0.1mm
  • Resolution: DOB/POB: 0.1deg; DBB: 0.1mm
  • Parameter preset resolution: DOB/POB: 0.1deg; DBB: 0.1mm
  • Northman Directional Valves
  • Preset of processing, i.e., with mandrel or without mandrel,
    auto mandrel lubrication, speed levels of DOB, DBB, and
    POB / Servo System – Series A, National (Japan)

STANDARD

  • Pressure Die Holder
  • Wiper Die Holder
  • Overhead Tie Bar (Eliminates Die Deflection)
  • Pressure Die Assist
  • Servo Carriage Boost
  • Panasonic Servo Motors
  • Mandrel Lubricator
  • Mandrel Extractor
  • Mandrel Early Out Programmable
  • Touch Screen (Proface America)
  • Clockwise Rotation

ADDITIONAL SPECIFICATIONS FOR THE 1000 CNC-B

  • Capacity: 8” x SCHED 80 x 5D
  • Maximum Feeding: 65.6 feet/minute
  • Maximum POB: 1 RPM
  • DOB – Bending Arm Speed: 0.5
  • Maximum Bend Radius: 5D
  • Maximum Bend Angle: 190 degrees
  • Operating Pressure: 2500 psi
  • Approximate Weight: 27 tons
  • Bend angle accuracy +/-: 0.1 degree
  • Bend arm speed: 15rpm
  • Electrical Power: 480/Customer specifications
  • Maximum tube length over mandrel: 20ft
  • Motor: 75HP
